Unify 162.
Technical Information
Model
Unify D04-10A
Operating Systems
Windows 11
Android 14
Android 14
Processors
Intel® Core™ i7-13 Gen
ARM Cortex-A76 8 Cores 2.4GHz
(Both processors work simultaneously)
ARM Cortex-A76 8 Cores 2.4GHz
(Both processors work simultaneously)
Graphics
Intel® Iris Xe Graphics

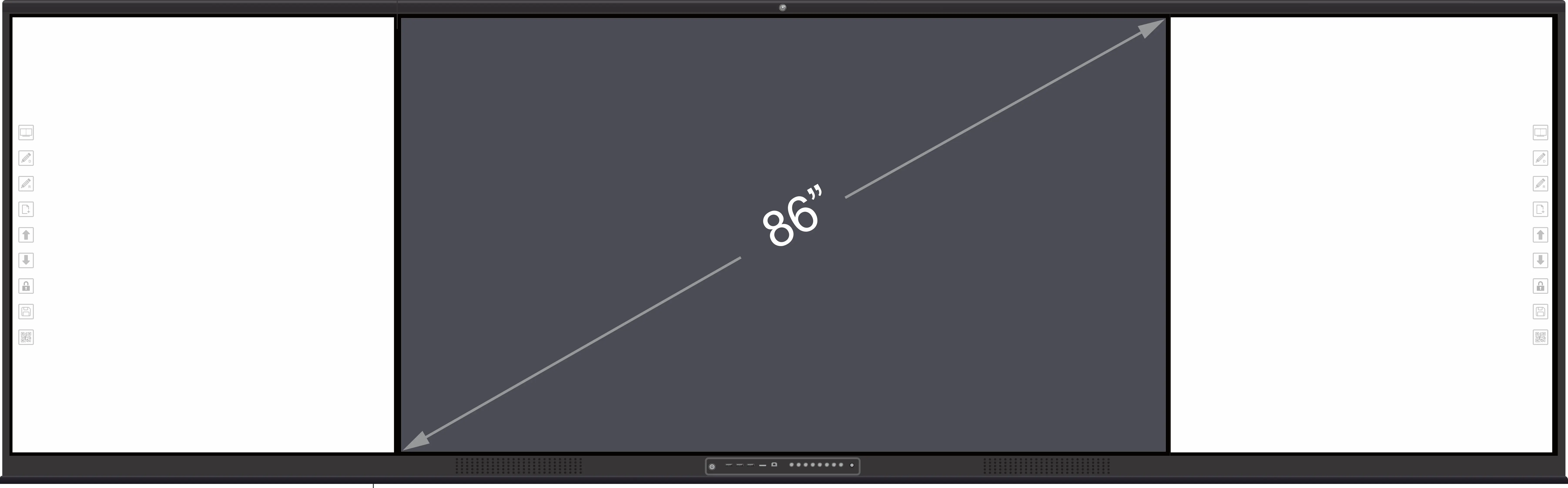

Screen
86 inches
4K (3840 x 2160) DLED
16:9 Aspect ratio
60Hz Refresh Rate
10-bit color
350 Nits
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
4K (3840 x 2160) DLED
16:9 Aspect ratio
60Hz Refresh Rate
10-bit color
350 Nits
4,000:1 Contrast
178° viewing angle
Anti-Reflective
4mm tempered glass protection
Memory
16GB LPDDR4
Storage
SSD de hasta 1 TB M.2 NVMe™
I/O Ports
7x USB 2.0
2x HDMI 2.1
1x VGA
1x RS232
1x Ethernet In
1x Ethernet Out
1x 3.5mm audio output connector
1x 3.5mm audio input connector
2x HDMI 2.1
1x VGA
1x RS232
1x Ethernet In
1x Ethernet Out
1x 3.5mm audio output connector
1x 3.5mm audio input connector
Touch
20-point simultaneous touch system, 8ms response speed
Physical Sides
Choose between white ceramic side whiteboards for marker writing or chalkboard for chalk writing, both options include a suite of physical quick access controls for equipment functions.
Power
Power consumption: ≤400 W
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Operating voltage: DC5V
Standby power: ≤0.5W;
Input: 110~240 V AC 50/60 Hz universal
Operating voltage: DC5V
Dimensions and Weight
Height: 1.18m
Width: 4.095m
Thickness: 0.12m
Weight: 110kg
Width: 4.095m
Thickness: 0.12m
Weight: 110kg
Environmental Requirements
Operating Temperature: 0 ℃ ~ 60 ℃
Languages
English (United States), Spanish (Mexico) and Italian
Warranty
3-year warranty on manufacturing defects and software (Extendable)
LED Panel Lifespan
50 thousand hours of continuous use
Priority Technical Support
Rapid response line
via (WhatsApp, Email and Signal)
via (WhatsApp, Email and Signal)
Security
Trusted Platform Module (TPM) 2.0
Items Included in the Box
Power cables
Maintenance tools
Markers
Unify physical keys (2x)
Maintenance tools
Markers
Unify physical keys (2x)
